North By Northwest

A journey undertaken in June 2006 to Ferozepur, Jammu, Udhampur and Katra to see, among other things, bridge and tunnel construction on the Udhampur-Katra section of the line to Kashmir.

Date: 2006-12-13
Owner: Gallery Administrator
Size: 64 items
DSC02242

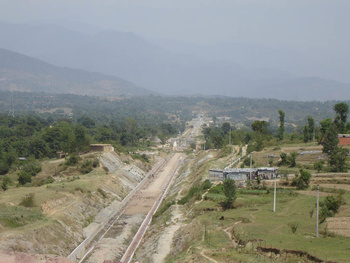

Looking back down the line from the top of Tunnel No. 3 towards Udhampur - the obstinate temple is visible.

DSCF3794

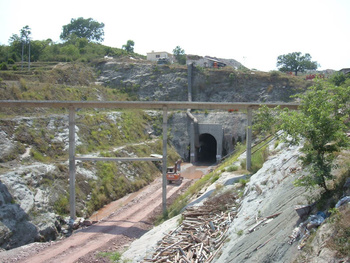

Major Tunnel No. 3, which was still being dug out in June (since completed). The pipe carries fresh air to the tunnel head, where most of the equipment works on diesel. Other material like concrete is sent down from the roof through long bore holes. By B

DSC02253

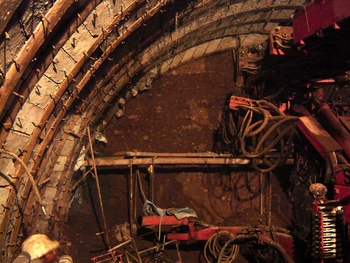

The business end of Tunnel 3. Long pipes are inserted into the soil forming a frame, the earth is removed and support arches inserted. At least that's how I understood it!

DSC02254

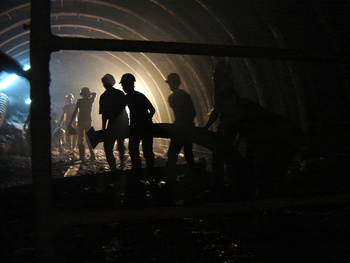

Workers move a steel support arch into place. The air pipe is just visible on the left. While everyone else looked comfortable, the diesel fumes were a bit much for us.

DSC02249

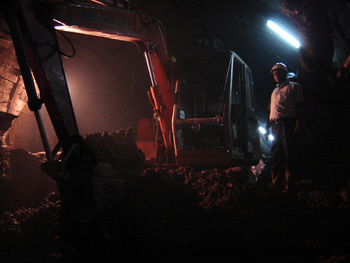

The worker ants of tunnelling machinery - the Porclain, hope I got the spelling right!

DSCF3809

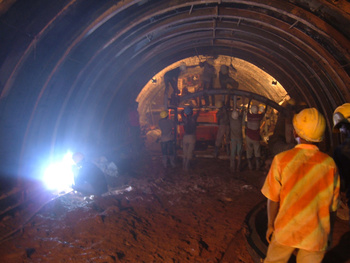

A welder remains busy as a support arch is put into place. By B Vohra

DSC02259

Gumboots are a must in the tunnel, along with hard hats.

DSC02261

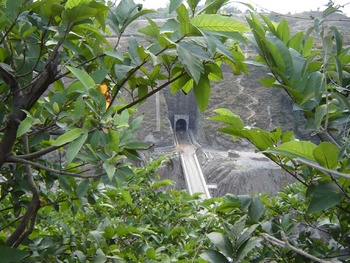

View from the top of the Katra end of Tunnel 3 - a bridge, followed immediately by Tunnel 4

DSC02267

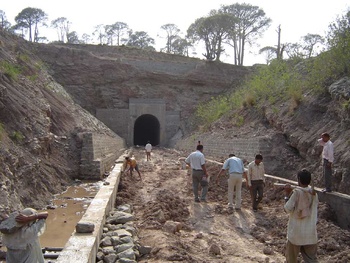

A smooth alignment is very much a hands-on process!

DSCF3825

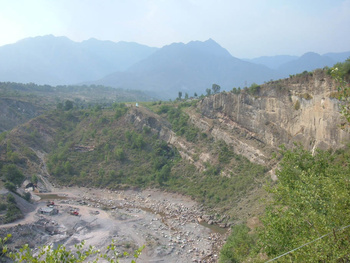

The river between Tunnels 3 & 4 has been pressganged into contributing stone and sand for the national cause. Photo by B Vohra

DSC02270

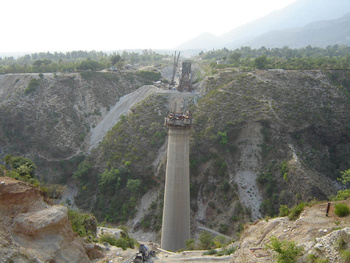

The humungous Bridge No. 20, which at 95 m will be higher than even the Panvelnadi Viaduct in the Konkan.

DSC02273

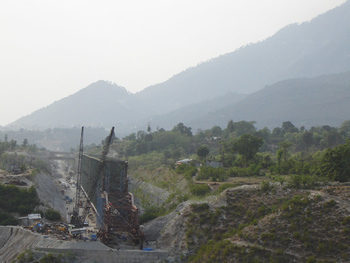

Girders are being readied for launch - see how tiny the cars look in comparison.

DSC02277

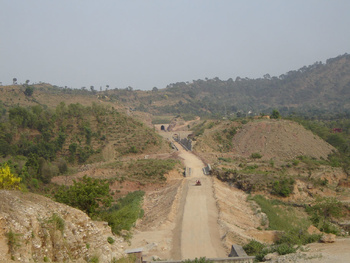

The approach to Bridge No 20, from the Udhampur side. The short tunnel beneath our feet opens onto the bridge.

DSC02278

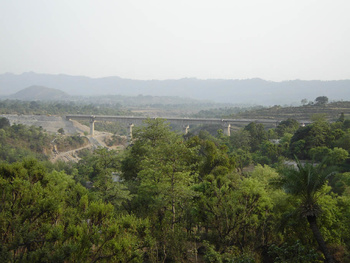

Yet another major bridge, just before Katra.

DSC02279

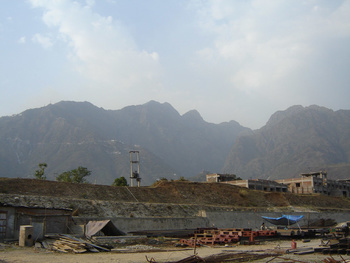

The Katra station house under construction - set at a higher level than the platforms, with the route to the Viashno Devi shrine clearly visible in the background.
