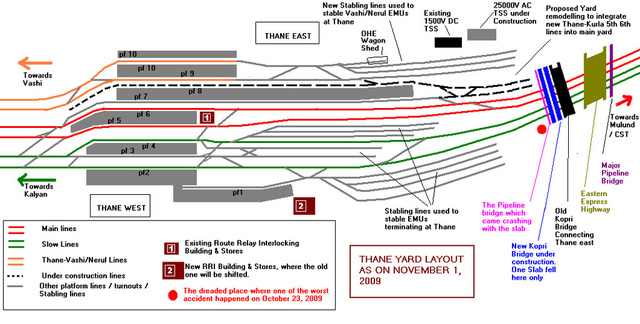

Thane Yard Layout showing the current layout as on November 1, 2009. After several months, we dont know how the yard may look. Shown in the layout are various rail-corridors, platforms, stabling lines, under construction lines, locations & ofcourse the accident which happened on October 23, 2009. Please dont mind the curvature / orientations etc, as I have tried to represent the actual layout. (Vijay Aravamudhan)

Date: 2009-11-01
Owner: Vijay Aravamudhan
Size:
Full size: 1024x519
Last
First •
Thane_Yard_Nov_01_2009
Comments
Great effort. Hats off to your patience! Illustration with multiple colors makes it more descriptive and easy to grasp.
Posted by Ranjeet Ramaswamy Iyer on 2009 Nov 02 13:00:27 +0000
Great work VJ!
Posted by Abhishek Risbud on 2009 Nov 02 03:11:20 +0000
Excellent work.
Posted by Apurva Bahadur on 2009 Nov 02 01:15:45 +0000
Nice. I simply appreciate your efforts.
Posted by Arzan Kotval on 2009 Nov 01 16:44:32 +0000
