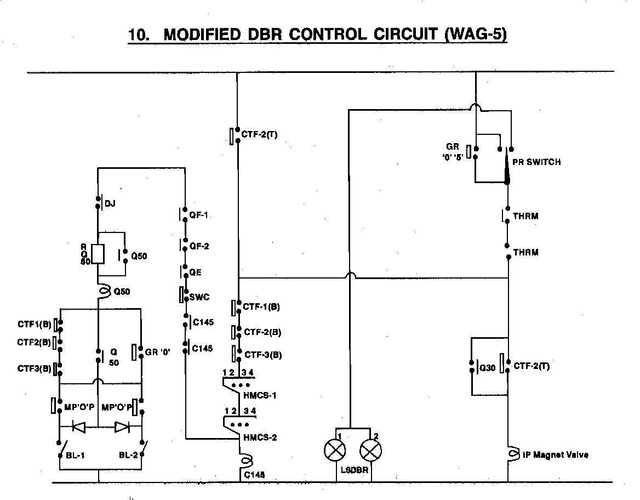

Circuit Diagram of Dynamic Brake Control in WAG-5 Locomotive. Diagram provided by Zubin J Dotivala, Jul 2003
