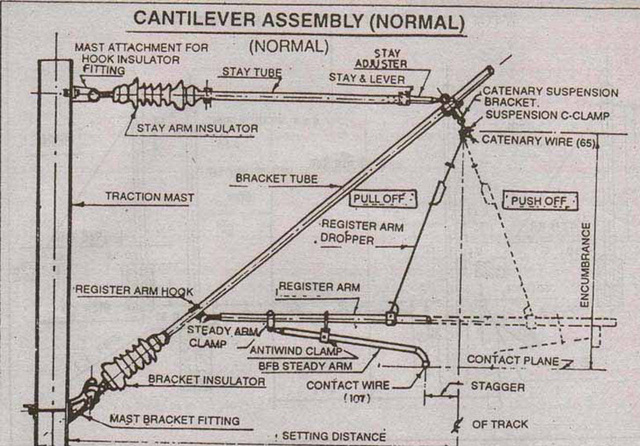

This assembly was used for AC traction masts in the early 70s (or before) - such as Howrah-Tundla/Durg, Igatpuri-Bhusaval, Virar-Ahmedabad. Since then, they changed the orientation of the register arm dropper so that it originates from the middle of...
This assembly was used for AC traction masts in the early 70s (or before) - such as Howrah-Tundla/Durg, Igatpuri-Bhusaval, Virar-Ahmedabad. Since then, they changed the orientation of the register arm dropper so that it originates from the middle of the bracket tube instead of the top. As an illustration, take a look at the left mast in http://www.irfca.org/gallery/openline/IMG_5833.jpg.html and note the orientation of the register arm dropper - the length gets cut down by half, resulting in huge savings in raw material.
Posted by Mani Vijay on 2008 Sep 19 13:04:55 -0400
Many more can be found at this very informative site - http://www.indianrailways.gov.in/financecode/ACTraction-II-P-II/AcTractionIIAppendix10.htm .
Posted by Mani Vijay on 2008 Sep 19 12:46:22 -0400
where do you think it could be used, particularly reading the names of parts that are marked on the diagram???
Posted by Binai K Sankar on 2008 Sep 19 09:59:02 -0400
Can someone explain this? Where is Cantilever Assembly used?
Posted by Ranjeet Ramaswamy Iyer on 2008 Sep 19 09:26:33 -0400
Very educating information! Good to know the correct names of the parts.
Posted by Apurva Bahadur on 2008 Sep 19 05:26:08 -0400
